360/B SOLOdrive (SL0360B3) eldoLED Programmable Constant Current LED Driver – 30W DALI-2 Dimming-Fast Shipping

Description

SOLOdrive 360/B Programmable Constant Current LED Driver, 30W Max Power Output, Universal 120-277V Input, Programmable Fixed Current Output 150-1400mA, 1-55V Output, DALI-2 Dimming 0.1%-100% Dim-to-Dark, Bottom Exit Stud Mounting

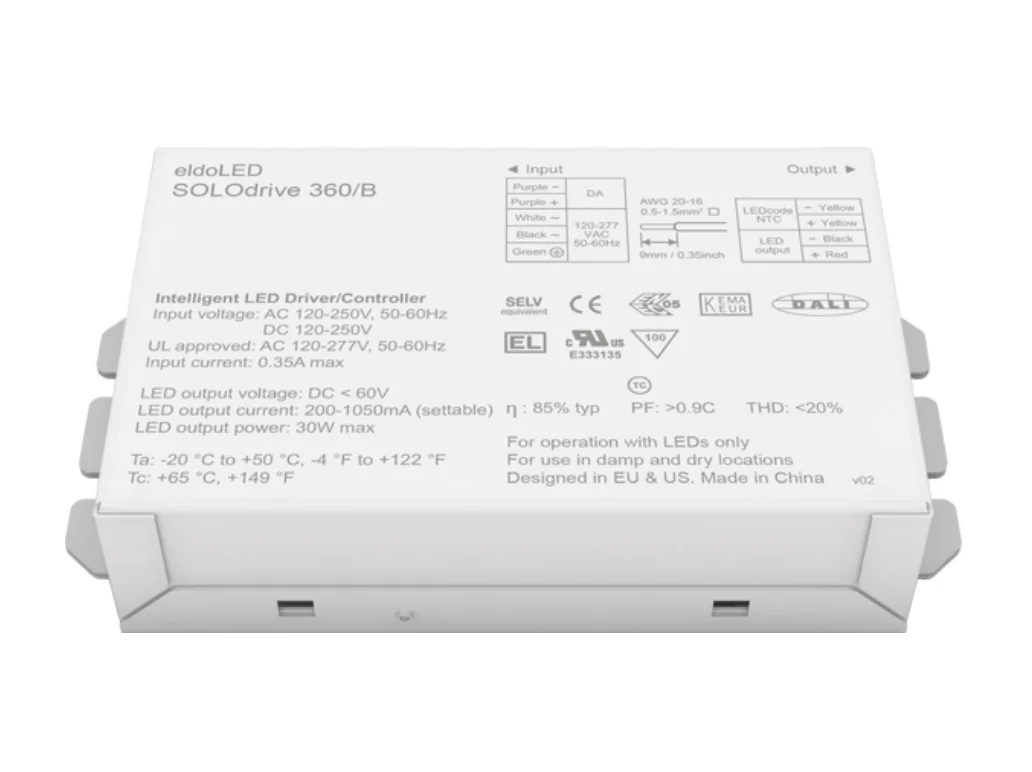

eldoLED SOLOdrive 360/B 30W LED Driver

SOLOdrive, 30W, DALI, 1 control channel, constant current, 1 x 55V output, bottom feed, square metal case/plastic lead cover

Programmable Options:

Output Current: 150-1400mA in 1mA increments

Dimming Curve: LIN linear, LOG logarithmic (factory default)

Minimum Dimming Level: 0.1% (factory default) in 0.1% increments

If you do not enter the programmable output settings as outlined above ADD TO CART, we will contact you after placing the order to get the output settings (from sticker on the driver for existing applications or custom settings for new applications) so we can program unit to this output specification. We are not able to ship with out programming.

For example 600MA LIN is what we will need to program your driver prior to shipping.
