SloanLED 701507-60W3 (Generation 3) Modular Power Supply, 60W Max Power Output, Universal 120-277V Input, Constant Voltage – 12 VDC Output, IP68 (dry/damp/wet) Ingress Protection Rating
DISCONTINUED BY MANUFACTURER – Shipping Manufacturer’s Replacement. Review complete specifications provided and order here: Principal Sloan P-OH060-12-EC-T

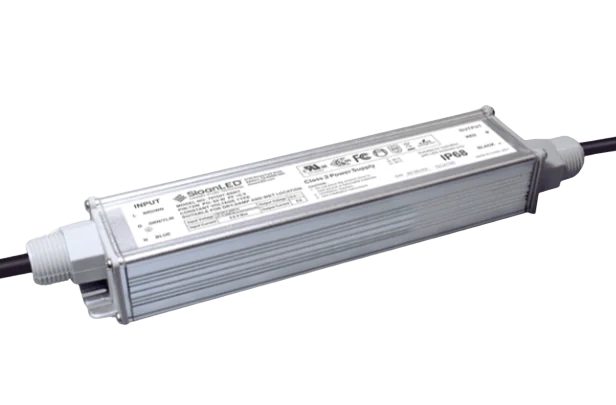

Sloan 60W3 60W 12 VDC Constant Voltage Power Supply
The SloanLED 60W3 12 VDC 60 Watt power supply for wet locations is designed specifically for the sign industry, incorporating innovations that speed installation and ensure reliable performance in harsh outdoor applications. The 60W3 is IP68 (Ingress Protection) rated to protect from dust and water intrusion, and is UL Recognized for dry, damp, and wet locations.
Features
Patented end cap design for easy electrical connections and installation
Auto-resetting No fuses to replace or circuit breaker to reset. Short circuit protection automatically resets when short condition is corrected
Simple secondary hook-ups No minimum load or load balancing required
Modular design Cluster with standard J-boxes to create multiple 60 W legs
Class 2 rated
Rugged and compact
Spec Sheets
SloanLED 60W3 60 W Power Supply Specifications
SloanLED 60W3 60 W Installation Instructions
