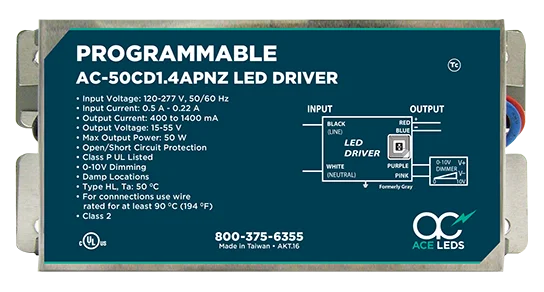

AC-50CD1.4APNZ ACE LEDS Programmable LED Driver – 50W 1400mA Dimmable-Fast Shipping

Description

AC Electronics (ACE LEDS) Constant Current LED Driver, 50W Max Power Output, Universal 120-277V Input, Programmable Fixed 400-1400mA (factory default 1400mA), 15-55Vdc Output, Analog 0-10V Dimming, Feet Mount Side Exit Leads

AC Electronics 50W Programmable Constant Current LED Driver

Adjustable Current and Dimming

Max Output Power: 50W

Programmable Output Current: 400-1400mA, factory default 1400mA

Output Voltage: 15-55V

Input Voltage: 120-277V

0-10V Dimming

Dimmable Range: 1-100%

Max Case Temp: 194°F/90°C

Min Starting Temp: -40°F/-40°C

UL and cUL Recognized

Class A Sound Rating

RoHS Compliant

IP66 – Harch Weatherproof

Surge Protection

Spec Sheets

AC-50CD1.4APNZ Spec Sheet
