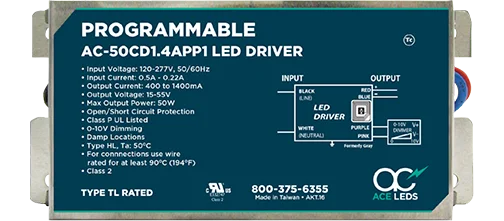

AC-50CD1.4APP1 ACE LEDS Programmable LED Driver – 50W 1400mA Dimmable-Fast Shipping

Description

AC Electronics Constant Current LED Driver, 50W Max Power Output, 120-277V Input, Field Programmable Fixed 400-1400mA (factory default), 15-55Vdc Output, Analog 0-10V Dimming 1-100%, Side and Bottom Mount

ACE LEDS 50W 1400mA Field Programmable Constant Current LED Driver

Max Output Power: 50W

Programmable via Smartphone (see instruction link provided):

Output Current: 400-1400mA (1400mA default)

Dimming Speed (Fast/Slow)

Dimming Curve Linear (LIN) or Logarithmic (LOG)

Output Voltage: 15-55V

Input Voltage: 120-277V

Analog 0-10V Dimming 1-100%

Class P, Class 2

Class A Sound Rating

IP66 – Harsh Weatherproof

Surge Protection: 2kV

Note: ACE LEDS is a brand of AC Electronics

Spec Sheets

ACE LEDS AC-50CD1.4APP1 Spec Sheet

ACE LEDS Smartphone NFC Programming Instructions
