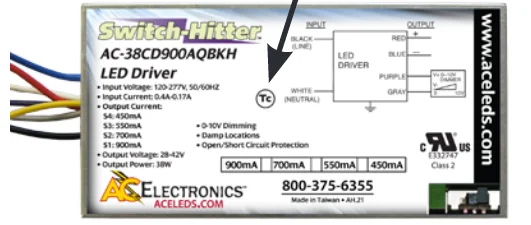

AC Electronics AC-38CD900AQBKH Bottom Mount Switch Hitter LED Driver-Fast Shipping

Description

AC Electronics Constant Current LED Driver, 38/30/23/18W, 900/700/550/450mA, 120-277V input, 0-10V Dimming, Bottom Mount

AC Electronics Constant Current LED Driver

Multi-Current Switching

Switch 1: 38W, 900mA

Switch 2: 30W, 700mA

Switch 3: 23W, 550mA

Switch 4: 18W, 450mA

Output Voltage: 28-42V

Input Voltage: 120-277V

0-10V Dimming

Dimmable Range: 100-10%

Max Case Temp: 194°F/90°C

Min Starting Temp: -40°F/-40°C

UL and cUL Recognized

Class A Sound Rating

RoHS Compliant

IP64

Surge Protection
