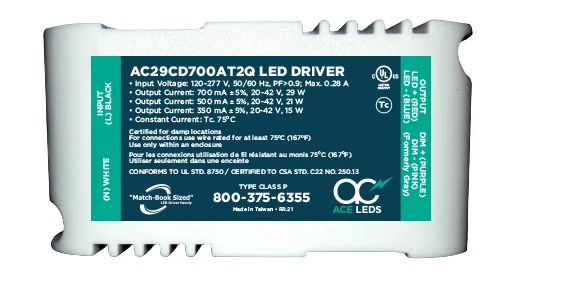

AC Electronics (ACE LEDS) Constant Current Selectable LED Driver, 120-277V Input, Multi-Switching Power/Current at 29W/700mA or 21W/500mA or 15W/350mA, 20-42V Output, Analog 0-10V Dimming, Side Exit Leads, Small Case, IP20
AC Electronics Multi-Switching Constant Current LED Driver
With the use of screwdriver , easily adjust the current to allow for 29, 21 or 15 watts of power.
Side Mount Leads
Selectable Max Output Power/Fixed Output Current: 29W/700m, 21W/500mA, 15W/350mA
Output Voltage: 20-42V
Input Voltage: 120-277V
Input Frequency: 50-60hz
0-10V Dimming
Dimmable Range: 100-5%
Class P Listed
Class A Sound Rating
LED drivers shall be installed inside electrical enclosures
Surge Protection 2Kv
IP Rating: 20
Approved Dimmers: Lutron NTSTV-DV, Leviton IP710 DL, Lutron NFTV, Watt Stopper ADF 120277
Spec Sheets
AC Electronics AC29CD700AT2Q Specs
