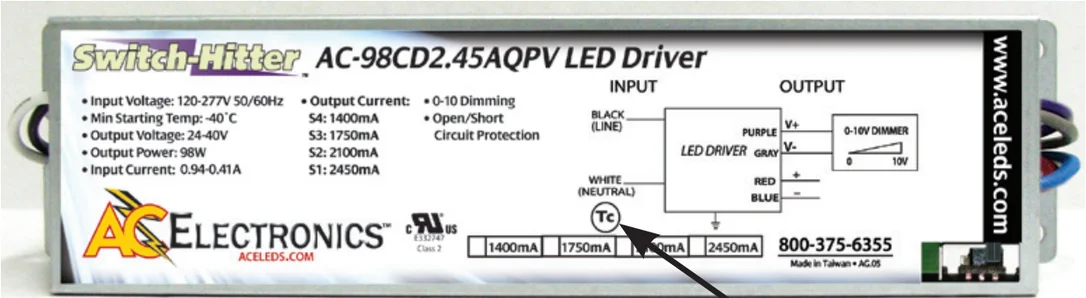

AC Electronics AC98CD2.45AQBPV Switch Hitter Bottom Mount LED Driver-Fast Shipping

Description

AC Electronics Constant Current LED Driver, 98/84/70/56W, 2450/2100/1750/1400mA, 120-277V, 0-10V Dimming, Bottom Mount

AC Electronics Constant Current LED Driver

Switch 1: 98W/2450mA

Switch 2: 84W/2100mA

Switch 3: 70W/1750mA

Switch 4: 56W/1400mA

Output Voltage: 24-40V

0-10V Dimming

Dimmable Range: 10-100%

Input Voltage: 120-277V

Max Case Temp: 194°F/90°C

Min Starting Temp: -40°F/-40°C

UL and cUL Recognized

Class A Sound Rating

RoHS Compliant

IP64

Surge Protection
