Description

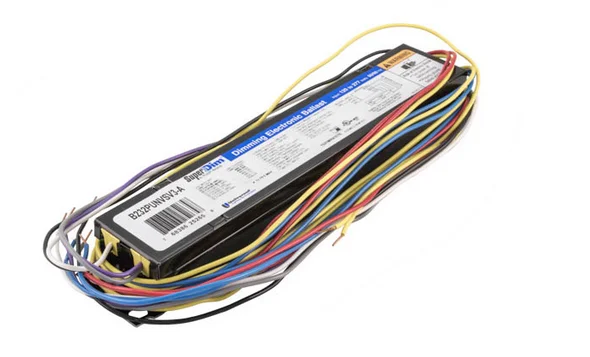

UNIVERSAL Triad SuperDim Electronic Fluorescent Dimming Ballast, 120-277V, 0-10V dimming 1-100%, 2 Lamps F32T8, F25T8, F17T8, Rapid Programmed Start
Universal Analog Dimming Electronic T8 Ballast
SuperDim ballasts provide analog dimming to a wide range of popular lamp types. SuperDim® ballasts work with T8 and T5 linear fluorescent lamps and compact fluorescent lamps. Adhere to even the strictest energy requirements, including ASHRAE 90.1 and California Title 24.
Features and Specifications
Dim to 3% for all lamp applications
UL LISTED (Class P, Type 1 Outdoor, Type CC)
Compatible with a wide range of 010 volt analog controls
Programmed rapid start technology maximizes lamp life
Low profile design for fixture design flexibility
Daylight harvesting options with photocells for maximum energy savings
End-of-lamp-life shutdown circuitry ensures safe operation
THD < 10% at full bright
Universal Voltage (120277 volts)
Replaces:
Universal ES5817K, ES5836K, ES5834B, ES5822B
Philips Advance IZT-2S32-SC, ILV-2S32-SC
Sylvania Powersense QTP2x32T8/UNV DIM-TC
Spec Sheets
Universal B232PUNVSV3-A Spec Sheet
