BDL60U Bodine Emergency Lighting Ballast – 300-700 Lumen Damp-Location-Fast Shipping

Description

BODINE Electronic Emergency Ballast, 300-700 Lumens, Universal 120-277V Input, LED charging indicator light, Indoor and Damp Location Rated, Single Lamp Operation, 1 or 2 13W-215W (single or bi-pin) T8/T10/T12 and 18W-40W 2G11 CFL bulbs

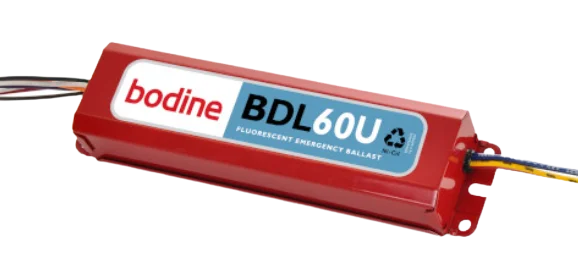

Bodine BDL60U Emergency Damp Location Ballast

This product is for use with one or two 13W through 215W (single or bi-pin) T8/T10/T12 and 18W-40W (4-pin 2G11 base) long compact fluorescent standard and dimming ballasts with integral starter. DL = Damp Location suitable

Features

Initial light output 300 to 700 lumens

Illumination time of 90 minutes

Ballast temp. rating Ambient Temp. Range 32°F to 122°F

Dual input voltage of 120V to 277 VAC, 60 Hz

High-temperature, maintenance-free nickel-cadmium battery

Electrical rating 5.0 Watts, 60 mA

Suitable for indoor and damp locations, sealed and gasketed – factory and field install

BDL60UREDM_BODINE_PD600202M

Replaces: Bodine B60, B60U

Includes: BDL60U Ballast with Test Switch Light, Charging Indicator Light Assembly, PRT00254 Grounding Kit

Spec Sheets

Bodine BDL60U Specs

Bodine BL60U Installation Instructions
