Description
BODINE FirstLink (FL) Emergency LED Driver, up to 900 Lumens, 10W 1500 Lumen, Universal 120-277V Input, 15-54VDC Output, ABConnect Communication Node with Test Switch/Indicator Light, CEC Title 20 Compliant

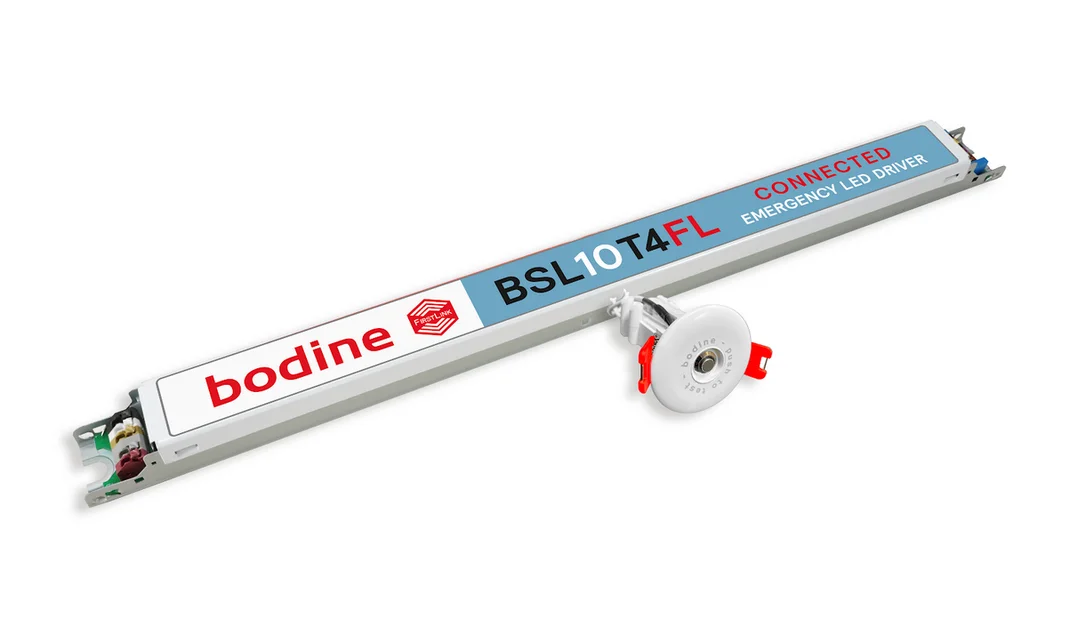

Bodine 10W 1500L FirstLink Emergency Lighting LED Driver + Connect Node
Features
10W initial (regulated), 1500 Lumen
Initial light output up to 1500 Lumens
ABConnect Equipped (No Enable Connector)
Illumination time of 90 minutes
Metal IP65 Bi-Color Illuminated Test Switch (Charge Indicator LED/Test Switch) with plenum rated cable
Rating Ambient Temp. Range 0°C to +55°C (32°F to 131°F)
Universal input voltage of 120V to 277 VAC, 60 Hz
High-Temperature, Maintenance-Free Lithium-Ion Battery with 7- to 10-Year Life Expectancy
Self Testing
Class 2 Output
FirstLink Node Power SupplyInstallation does not affect the UL Listing of the luminaire
Spec Sheets
Bodine BSL10T4FL Spec Sheet
Bodine BSL10T4FL Installation Instructions
Bodine FirstLink Specification Sheet
Bodine FirstLink Application Guide
Bodine FirstLink Connected Emergency Lighting Bulletin
