BXRC-35G10K0-B-73-SE Bridgelux Gen7 Vero SE 29 LED Array – 12823 lumen 3500K-Fast Shipping

Description

Bridgelux Vero SE 29 LED Array chip on board (CoB), 14321 lumen, 80 CRI min, 2700K Warm White Color Temperature, 3-Step MacAdam Ellipse

Order Separately – Molex Pico Wire Harness for Bridgelux Vero 10/13/18/29 Arrays

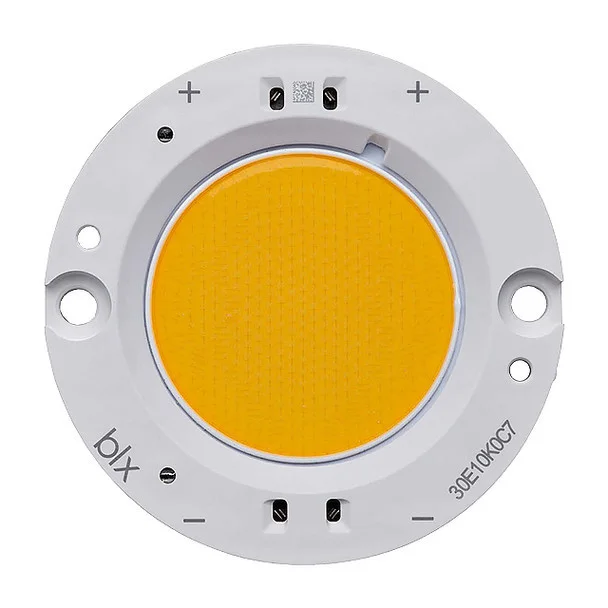

Bridgelux Vero SE 29 LED Array Chip on Board 14321 Lumen 2700K

Vero SE 29 Series 2700K 80 CRI min 14321 lm 52V 3 SDCM Warm White LED Array

Vero SE Series is a revolutionary light source system that integrates Bridgeluxs 7th generation COB technology with poke-in connectivity enabling solder-free installation

Typical 153 lm/W typical

Dual poke-in connectivity

49.20mm side-to-side, flat height of 3.60mm

Viewing Angle: 120°

Typical Drive Current: 1800mA

Spec Sheets

BXRC-27E10K0-B-73-SE Spec Sheet
