C242UNVME Universal Triad Compact Fluorescent Ballast – Feet Mount-Fast Shipping

Description

UNIVERSAL Triad Electronic Compact Fluorescent Ballast, 120V-277V, One or Two Quad or Triple 42W, 32W, 57W, 70W 4-pin Lamps and FT24W, FT36W, FT40W, FT55W 2G11 Lamps and others, Multi-Exit Feet Mount, Programmed Rapid Start

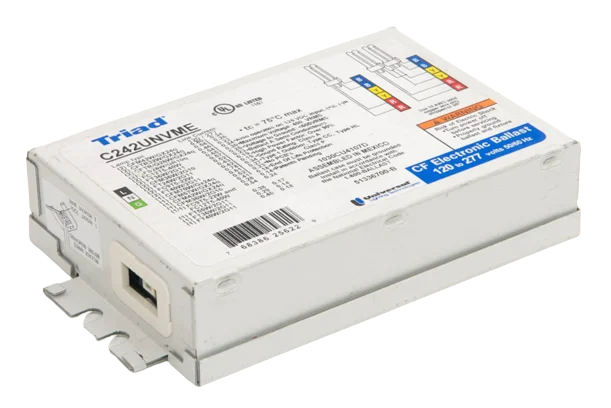

Universal Triad C242UNVME Compact Fluorescent CFL Ballast

Replaces Universal Triad C242UNVSE and C242UNVBE Ballast – “ME” Multiple Exit includes both a “SE” Side Exit and “BE” Bottom Exit

Operates:

One or two 42W Quad/Triple tube lamps

One 57W Quad/Triple tube lamp

One 70W Quad/Triple tube lamp

One or two 36/40/55 watt long twin tube T5 lamps (2G11 base)

Two 24W long twin tube T5 lamps (2G11 base)- FT24W

Two 22W T5 circline lamps

22W + 40W T5 circline lamps

Equivalent Replacement for:

Sli/Valmont E1/232/42PUVNCF

Sylvania Osram QTP1X57CF/UNVBM, QTP2X26/32/42CF/UNV DM, QTP2X42CF/UNVBM, QTP2X42CF/UNVTM

Sli/Valmont E1/232/42PUVNCF

Advance Philips ICN-1TTP40-SC, ICN-2TTP40-SC

Hatch HC242PS/UV/DJ, HC242PS/UV/D, HC242PS/UV/K

Universal C242UNVSE, C242UNVBE, C242UNVBES, C242UNVSES, BBT-136, BBT-136OVP, BBT-136-OVP, BBT-236, BBT-236OVP

C242UNV Spec Sheet
