Description
About this item

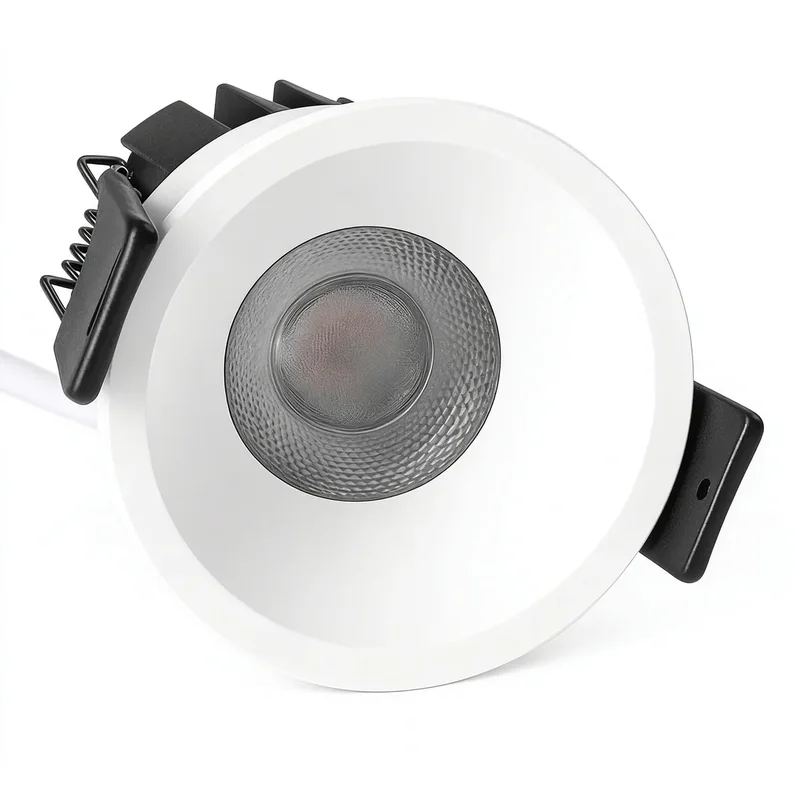

- Architectural Recessed Design: Engineered for modern architectural lighting applications, this 7W downlight features a compact recessed structure and clean ceiling integration for a refined professional appearance.
- High CRI Performance: Full-spectrum COB LED technology delivers CRI>97 color rendering, helping objects, finishes, and interior materials appear natural, vivid, and accurate.
- Deep Anti-glare Optical System: The deeply recessed light source reduces direct glare and improves visual comfort while maintaining focused illumination for commercial, hospitality, retail, and residential spaces.
- Reflector Geometry Design: Precision angled reflector geometry supports controlled 24° beam distribution, reduced light spill, and enhanced accent lighting performance.
- Premium Lighting Quality: Designed with 5CCT adjustable color temperature, TRIAC dimming compatibility, flicker-free performance, and stable 90–140V operation for reliable everyday use.
Package Included
| Wattage & Pack Size | Package Included |
| 7W – 4Pack | 4 × Deep Anti-Glare LED Downlights 4 × TRIAC Dimmable LED Drivers 1 × User Manual |
| 7W – 12Pack | 12 × Deep Anti-Glare LED Downlights 12 × TRIAC Dimmable LED Drivers 1 × User Manual |
Order & Logistics
- Lead Time: Usually ships within 1–3 business days from local warehouses. If local inventory is unavailable, fulfillment from HQ within 10–15 business days.
- Packing: Protective cardboard box with individual foam compartments
- Most items in this series are stocked in our local warehouses in the US, UK, and Germany for 3–7 day delivery.
- If an item is out of stock locally, it will ship from our headquarters warehouse: 9–18 days standard or 5–9 days express.
Key Specifications
- Wattage: 7W
- Voltage: 90–140V AC
- Beam Angle: 24°
- Color Temperature: 5CCT Adjustable (2700K / 3000K / 3500K / 4000K / 5000K)
- CRI: >97 Full Spectrum
- Housing: White aluminum housing with black anti-glare reflector
- Dimming: Compatible with TRIAC dimmers (10–100%)
- Mounting Type: Recessed ceiling mount
- Lifespan: 50,000 hours
Technical Specifications
| Item | Specification |
| Product Name | CDG-US Angled Reflector Deep Anti-Glare Full Spectrum LED Downlight |
| Wattage (Cut-out Size) | 7W (2.2″) |
| Housing | White aluminum housing with black anti-glare reflector |
| Optical Structure | Deep anti-glare design; slanted reflector cup with angled inner wall |
| Light Source Type | Full-spectrum COB, 5CCT Adjustable |
| Beam Angle | 24° |
| Cutout Size | Ø55 mm (2.2″) |
| Product Size | D62 × H69 mm |
| Input Voltage | AC 90–140V |
| Dimmable | TRIAC dimmable |
| Color Temperature | 5CCT selectable, 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | >97 |
| Light Efficacy | 75 lm/W |
| Driver / Power Supply | Metal housing driver; TRIAC dimmable; 5CCT DIP-switch driver |
| Flicker | Flicker-free |
| Blue Light | Low blue light |
| Installation Type | Recessed ceiling mount |
| Application | Architectural recessed lighting with deep anti-glare performance for residential and commercial interiors |
| Use Environment | Indoor use only |
Usage Notes / Installation Tips
- Ensure power supply is disconnected before installation or wiring adjustment
- Confirm cut-out size and ceiling depth before mounting
- Choose appropriate color temperature using the 5CCT switch before installation
- Use with compatible TRIAC dimmers for optimal dimming performance
- Recommended for dry and damp locations; avoid direct water exposure
Applications
- Commercial: retail stores, showrooms, galleries, and offices
- Hospitality: hotels, restaurants, cafes, and reception halls
- Residential: living rooms, kitchens, hallways, and staircases
- Architectural & Accent Lighting: focused illumination with glare control
