Description
Advance CertaDrive SM Point Constant Current LED Driver, 12W Max Power Output, Universal 120V-277V Input, Fixed Field-Select 250mA or 275A Output Current, 24-42V Output, Analog 0-10V Dimmable 10%-100%, Side Entry

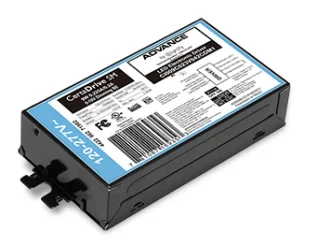

Advance CertaDrive SM 12W 250mA/275mA Constant Current LED Driver – Side-Entry
100 – 277Vac, 12W, 250/275mA, 24-42V, [0-10V], IP20 LED Driver, Side Entry Feet Mount
Total Max Output Power: 12W
Output Current 250mA or 275mA – Adjustable via Switch
Input Voltage: 120-277 VAC
Output Voltage Range: 24-42VDC
UL Damp and Dry
Dimmable 10%-100%, 0-10V Analog
Class 2 Wiring
Side Exit with Feet Mount
Spec Sheets
Advance CertaDrive CI012C028V042CDD1 Spec Sheet
