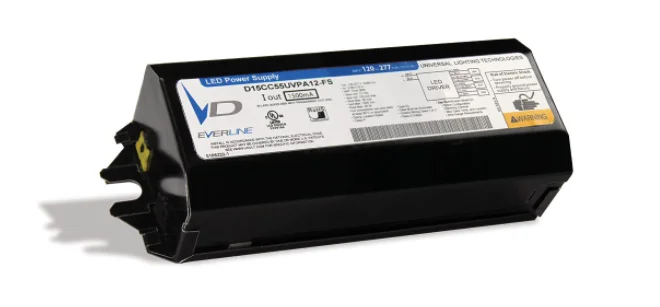

D15CC55UVPA12-FS Universal EVERLINE Programmable LED Driver – 55W 1500mA 12V-AUX-Fast Shipping

Description

Universal Everline D15CC55UVPA12-FS Constant Current LED Driver, 55W max power, programmable 100-1500mA (factory set 1500mA) fixed output current, 0-10V Dimming 1%-100%, auxilary 12Vdc, (-FS) Short Case Feet Mount.

Universal Everline 55W Constant Current LED Driver with Auxiliary

The EVERLINE® PA drivers with 6kV transient protection, full potting and Type HL rating are ideal for industrial applications such as high bay facilities and warehouses or outdoor applications such as area and street lighting.

Constant Current LED Driver

0-10V Dimming to 1% standard or dim-to-off upon request.

Output Power 55W

Input Voltage: Universal 120~277V

Output Voltage: 15V to 37V @ 1.50 Amps 15V to 56V @ 0.98 Amps

Max Output Current 1500mA

Start Temp. (Min) -40C (-40F)

IP66 UL Damp/Dry location rated

Class 2 rated
