D21CC80UVPWA12-D Universal EVERLINE LED Driver – 80W 2100mA 12V-AUX-Fast Shipping

Description

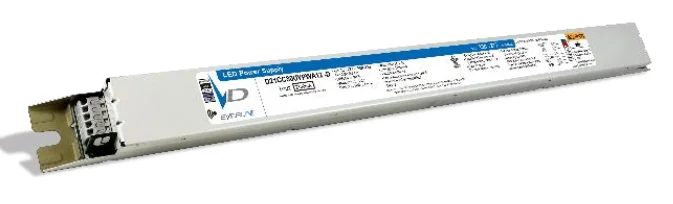

Universal Everline D21CC80UVPWA12-D Constant Current Programmable LED Driver, 80W 2100mA output, 0-10V Dimming to 1%, includes auxiliary port (1.2W 100mA, 12Vdc), (-D) Linear Case Feet Mount

DISCONTINUED BY MANUFACTURER – Shipping Manufacturer’s Recommended Replacement. Please review to confirm and order here: D21CC80UNVPWX12-D

Universal Everline 80W Constant Current 0-10V Dimmable LED Driver

The EVERLINE PWA series of Constant Current Linear LED Drivers features wireless programming, auxiliary output power, dim to off (programable) and configurable dimming curves.

Constant Current LED Driver

0-10V Dimming to 1% standard or dim-to-off upon request.

Output Power 80W

Input Voltage: Universal 120-277V

Output Voltage: 5V to 38V @ 2.10 Amps; 15V to 56V @ 1.40 Amps

Max Output Current 630-2100mA

Start Temp. (Min) -40C (-40F)

UL Damp/Dry location rated

Class 2 rated
