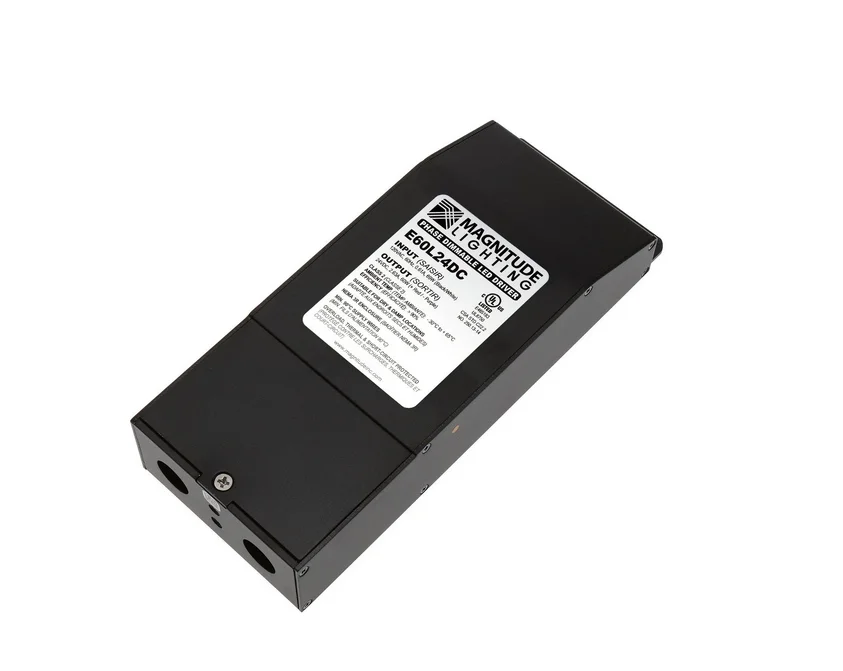

E60L24DC Magnitude (E60L24DC-KO) E-Series Constant Voltage LED Driver – 60W 24V Dimmable Junction-Box Knock-out-Fast Shipping

Description

Magnitude Lighting Constant Voltage LED Driver, UL Listed, 60W Max Power, 120V Input, Fixed 24Vdc Output, Output Current up to 2630mA, Phase Dimmable 1%-100%, NEMA 3R Junction Box, 2 Knock-outs

Magnitude 60W 24V Constant Voltage LED Power Supply – UL Listed

Max 60W LED Power Supply

Input Voltage: 120VAC, Output Voltage: 24VDC

Current Output: up to 2.63A

Dimming: phase-dimmable down to 1% with leading edge TRIAC dimmers

Indoor/Outdoor NEMA 3R

Class 2 power supply

UL 8750 Listed

Wiring compartment with two ½” knockouts, clamp connectors included

E60L24DC-KO / E60L24DC – exact same unit

Spec Sheets

Magnitude E60L24DC Spec Sheet

Magnitude E60L24DC Installation Guide

Magnitude E-Series Dimmer Compatibility List
