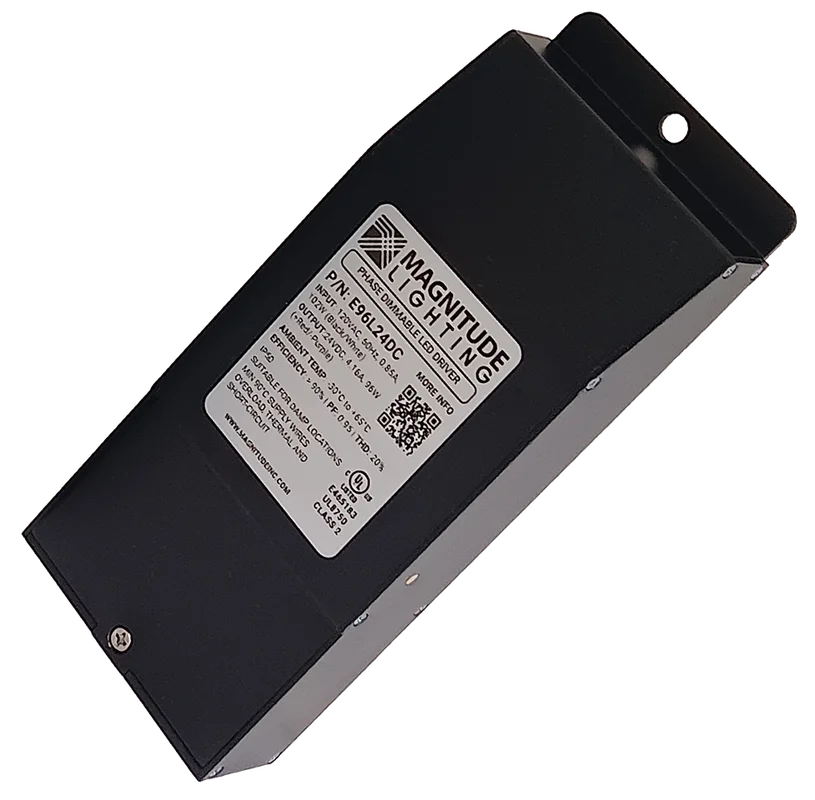

E96L24DC Magnitude (E96L24DC-KO) E-Series Constant Voltage LED Driver – 96W 24V Dimmable Junction-Box-Fast Shipping

Description

Magnitude Lighting Constant Voltage LED Driver, 96W Max Power, 120V Input, Fixed 24Vdc Output, Output Current up to 4160mA, Phase Dimmable 1%-100%, NEMA 3R Junction Box

Magnitude 96W 24V Constant Voltage LED Power Supply – UL Listed

Max 96W LED Power Supply

Input Voltage: 120VAC, Output Voltage: 24VDC

Current Output: up to 4.16A

Dimming: phase-dimmable down to 1% with leading edge TRIAC dimmers

Class 2 power supply

UL Listed enclosure. Wiring compartment with two ½” knockouts

E96L24DC-KO (Knock Out) is now E96L24DC with Junction Box

Spec Sheets

Magnitude E96L24DC Spec Sheet

Magnitude E96L24DC Installation Guide

Magnitude E-Series Dimmer Compatibility List
