Description
EiKO Emergency LED Driver Integral or Separate Battery Configuration, 8W/15W/20W/30W Constant Output Power delivers 800/1500/2000/3000 Lumens (@100lm/W fixture), Universal 120-277V Input, 25-50Vdc Output Voltage, Lithium Battery, EEBE has flex conduit and test button attached

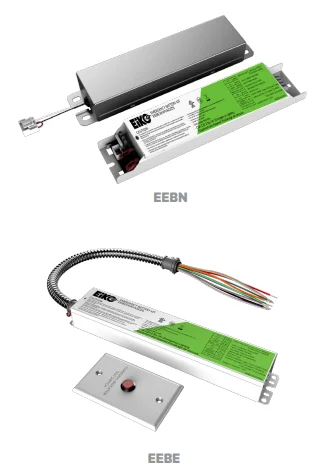

EiKO EEB-Series Emergency LED Driver Kit
An LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation, featuring integrated self diagnostic circuitry that automatically conducts regular tests to verify proper emergency capability
Features
Initial light output up to 3750 lumens (see specification sheet provided)
Emergency Illumination time of 90 minutes
Self-diagnostic circuitry performs annual/monthly testing automatically
Auto-adjusting Class 2 25-50VDC output accommodates a wide range of forward voltage LED designs
Universal input voltage of 120-277 VAC, 50/60 Hz (100-347V available)
UL Listed for field installation
UL Listed for dry/damp locations
Long-life high-temperature recyclable Lithium battery
Meets CEC Title 20 (California Energy Commission) efficiency standards
Spec Sheets
EiKO EEB-Series Emergency Battery Kit Specification Sheet
EiKO EEBE Integral Battery Install Instruction Sheet
