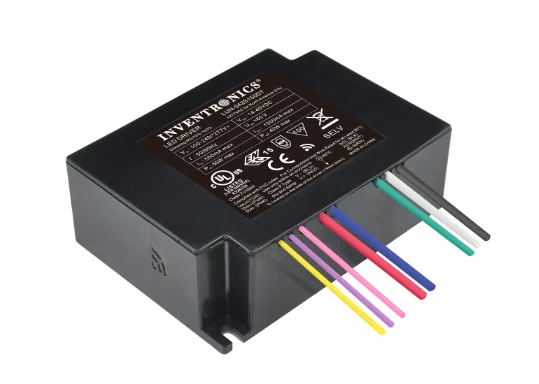

EUM-050S090DG Inventronics Constant-Current-Programmable LED Driver – 50W 700mA Dimmable-Fast Shipping

Description

Inventronics EUM-050S090DG Constant Current LED Driver, 50W Max Power Output, Universal 120-277V Input, Programmable 550-900mA (factory set at 700mA) Output Current, 28-91V Output, Analog/PWM/Timer Dimming

Inventronics 50W Constant Current Programmable LED Driver

Programmable, Enabling Hundreds of Configurations 550mA to 900mA (factory default 700mA)

Compact Metal Case with Excellent Thermal Performance

Dimming Controls: Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable

Input Surge Protection: DM 6kV, CM 10kV

Output Lumen Compensation

Class 2 and SELV Output

IP66 / IP67 and UL Dry / Damp / Wet Location

TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location

Spec Sheets

Inventronics EUM-050S090DG Specs
