Description
FULHAM FireHorse Electronic Emergency Ballast, 500 Lumens, 120V to 277V, Operates Multiple Lamps – See Spec Sheet
DISCONTINUED BY MANUFACTURER. Shipping Recommended Replacement – please review and order here: Fulham FH7-UNV-500L-CEC

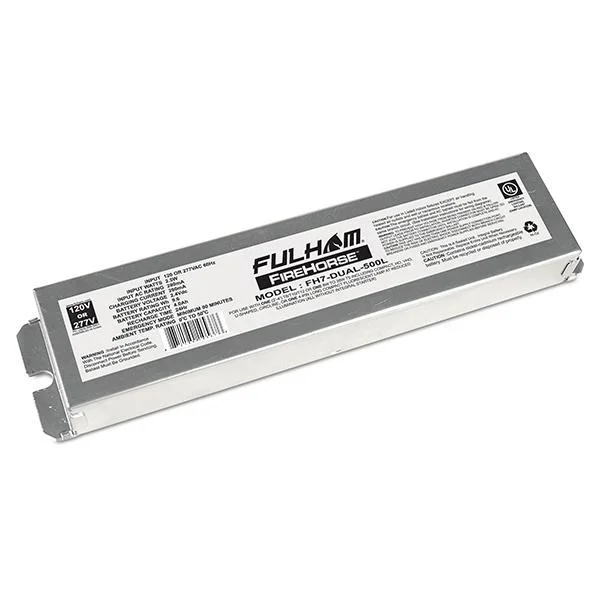

Fulham FireHorse 500 Lumens Fluorescent Emergency Lighting Ballast
The FireHorse emergency ballast can be used to add emergency lighting with or without an AC ballastnd with most fluorescent luminaires without affecting normal luminaire operation. The emergency ballast is designed for factory or field installation and can be mounted on top, inside, or remote from the luminaire.
Specifications
UL Approved
LED Indicator and Test Switch
Operating Voltage: 120V or 277V
Initial Lumen Output: 500
Minimum Illumination Time: 90 Minutes
Battery is a High Temp. Long Life Rechargeable NiCd
Battery Voltage: 6.0Vdc
Battery Rating: 9.0 Wh
Hardware kit and instruction sheets are included with Ballast
Operates in Emergency Mode
One Lamp – 17W TO 40W (2-4), T8/T10/T12 OR ONE 8W TO 28W T5 INCLUDING COMPACT, HO, VHO, U-SHAPED, CIRCLINE
One Lamp – 4-PIN LONG COMPACT FLUORESCENT LAMP>/li>
