Description

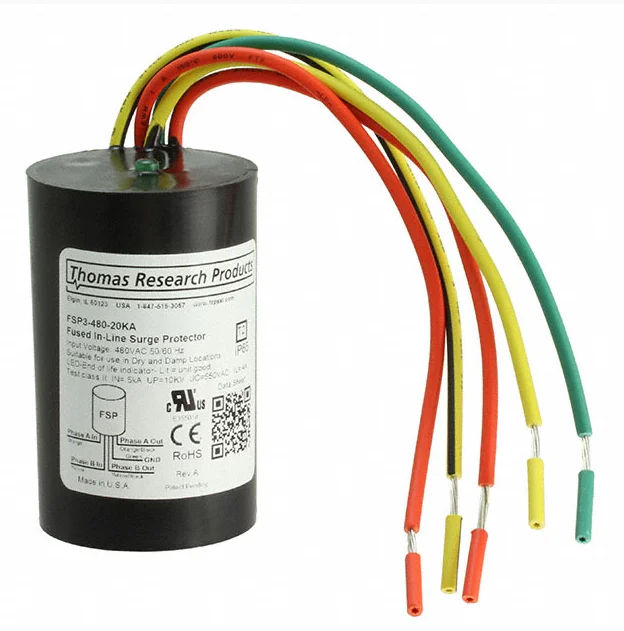

Thomas Research FSP3-480-20KA LED Driver 3-pole Fused In-line Surge Protector, 480V main, 20kA Surge Protection, IP65 rated
Thomas Research Products FSP3 Series LED Driver Fused In-line Surge Protector
TRP’s FSP3 Surge Protectors are designed for use in conjunction with LED Drivers to provide an additional level of protection against powerline disturbances in industrial or commercial applications
Test qualified for Texas DOT, Departmental Materials Specification for LED Roadway Lighting
FSP3-480-20KA is a 5-leaded device for 480VAC Phase to Phase applications and provides protection that includes one Phase to a second Phase, one Phase to Ground, and second Phase to Ground possible couplings
480V Models: Protection for LED drivers capable of operating at 480V input voltage or with universal input ranges of 277V through 480V or 347V through 480V. Not optimized for single voltage devices operating at 277V-only or 347V-only.
Available in 277V and 480V models
With indicator light
Main Voltage: 277V
Continuous Max Voltage Rating: 550 VAC 745Vdc
High temperature, flameproof plastic enclosure, 85ºC max surface temp rating
IP65 Rated
Spec Sheets
Thomas Research FSP3 Series Specs
