Description
GreenLightingLED Emergency Backup Micro Inverter, 25W Max Power Output, Powers LED, fluorescent and incandescent lighting fixtures during emergency situations for more than 90 minutes. BAA Compliant.

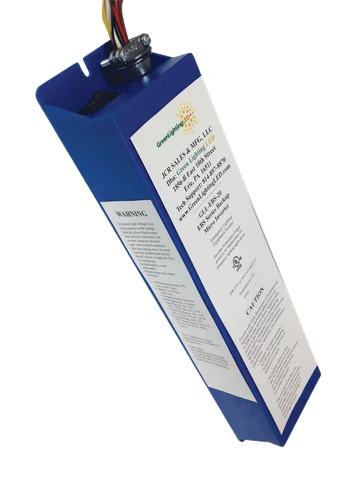

GreenLightingLED 25 Watt Egress Lighting Micro Inverter
GLL Micro inverter provides up to 25 watt of emergency backup light exceeding 90 minutes for LED retrofit installations to meet NEC requirement for EGRESS lighting.
The Green Lighting LED GLL-EBS-20 Emergency Lighting Micro Inverter is used in conjunction with an LED fixture to create a code compliant emergency lighting fixture. The maximum load of the GLL-EBS-20 is 25W. In the event of power failure, the micro inverter begins to provide full emergency power to the connected lighting load for a minimum of 90 minutes. When normal power is restored, the GLL-EBS-20 automatically returns to charge mode. Battery capacity is restored within 24 hours. The GLL-EBS-20 does not affect normal light fixture operation and can be used with a switched or unswitched light fixture. Each unit comes with a test switch and charge indicator panel.
Features and Performance
90 minutes effective life, recharge within 24 Hours
Maximum Load Power: 25W
Lamps operated: LED, Fluorescent and incadescent fixtures
Dual Input voltage 120V or 277VAC, 60Hz | Input Current 90 mA
Output Current: 120V (165 mA) or 277V (72 mA) auto-select
Polymer Lithium-Ion battery technology with expected life of 7-10 years
Remote-mounting up to 250 feet maximum
Indoor and Damp location rated
Includes a test switch and charge indicator panel
Certified ARRA, Buy American – American engineered and American manufactured.
Complies with comply with UL, cUL, and NEC requirements for emergency lighting – Factory or Field Installation
