Description
IOTA Emergency LED Driver, 20W Constant Power Output, 347-480VAC Input, 55-200VDC Output, Non-Class 2, 90 minute emergency operation, CA Title 20 Compliant, multiple mounting configurations available.

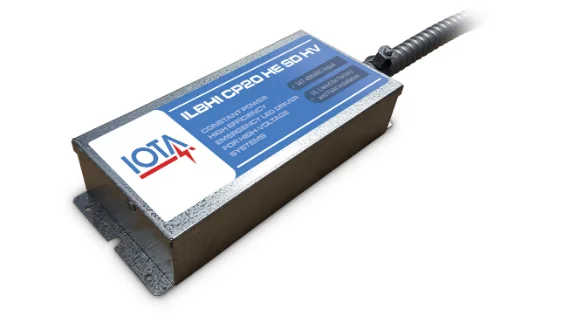

IOTA 20 Watt Constant Power Emergency LED Driver
The IOTA ILBHI-CP20-HE-SD-HV is a UL Listed emergency LED driver for field and factory installation that allows a 347-480VAC fixture with 55-200VDC Non-Class 2 LED lighting loads to be used for both normal and emergency operation. The ILBHI-CP20-HE-SD-HV will operate the 55-200VDC LED load at 20 watts with Constant Power. Features high-efficiency performance and is certified in the CA Title 20 Appliance Efficiency Database.
Accommodates fixtures using a high-voltage AC input from 347-480VAC, 50/60 Hz
Auto-adjusting 55-200 VDC output range accommodates a wide range of Non-Class 2 forward voltage designs
Constant wattage delivery maintains illumination level for the full emergency runtime with no degradation
Monthly and annual self-test feature satisfies the periodic testing requirements in accordance with NFPA 101 while the on-board diagnostics provides system readiness with visual indicators.
20W emergency output is ideal for elevated mounting heights and high-bay fixtures
UL Listed for Factory and Field Installation in U.S. and Canada
Certified to CA Title 20 and registered in the Modernized Appliance Efficiency Database (MAEDBS)
Available Models
ILBHI CP20 HE SD HV A (Dual Flex)
ILBHI CP20 HE SD HV B (No Flex)
ILBHI CP20 HE SD HV S (Single Flex)
Spec Sheets
ILBHI-CP20-HE-SD-HV Spec Sheet
ILBHI-CP20-HE-SD-HV-A Installation Instructions
ILBHI-CP20-HE-SD-HV-B Installation Instructions
ILBHI-CP20-HE-SD-HV-S Installation Instructions
