Description
Metal Halide Lamps for TV, Film and Stage

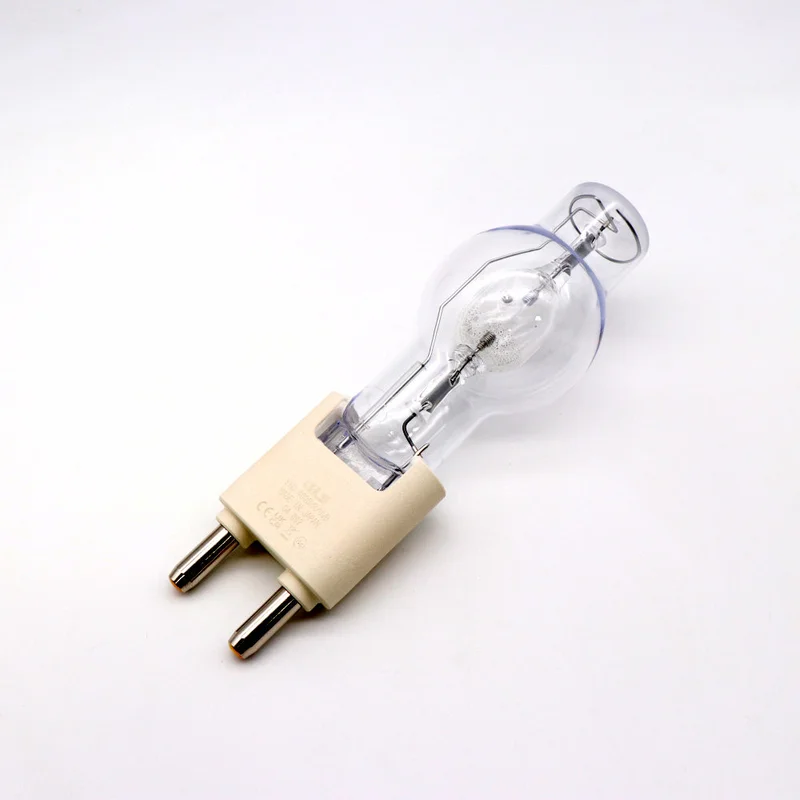

The KLS KHD-4000HR/UVB is a 4000W hot restrike metal halide lamp engineered for the most demanding large-scale production lighting applications. Delivering an extraordinary 380,000 lumens at 6000K daylight color temperature with a CRI of ≥95, it produces the intense, accurate, and natural-looking light required for major film productions, large broadcast studios, and arena-scale stage events. The hot restrike capability allows immediate re-ignition after switch-off — critical in live production environments where every second counts. With a G38 base, 45,000V ignition voltage, and 500-hour rated life, it is a direct cross-reference replacement for Osram HMI 4000W/SE XS & Digital (54321), Philips MSR 4000W HR SE, GE CSR 4000/SE/HR, and Kyoto DIS-40H UV-B lamps.
Specifications
: KHD-4000HR
Wattage: 4000W
Base: G38
Lumens: 380,000
Efficacy: 95 lm/W
Color Temp: 6000K
CRI: ≥95
Amperage: 24A
Ignition Voltage: 45,000V
Average Rated Life: 500 hrs
MOL: 255mm
Diameter: 73mm
LCL: 142 ± 1mm
Cross References
- Osram HMI 4000W/SE XS & DIGITAL (54321)
- Kyoto DIS-40H UV-B
- Philips MSR 4000W HR SE
- GE CSR 4000/SE/HR
