Description

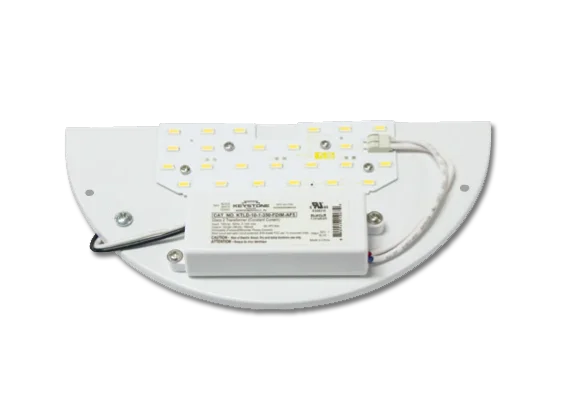

KEYSTONE Sconce LED Retrofit Kit, 8 in, 650lm (7W) or 1150lm (11W), 3000/4000/5000K Color Temperature, Pulse Wave Modulation Dimming
Pre-assembled UL 1598C Classified (pending) LED retrofit kit. Includes the following components:
LED Driver
LED Module
Metal Pan
Mounting Accessories (mounting hardware, and wiring hardware)
Module Features
For Use in Class 2 Lighting Systems
Highly Reflective White Soldermask
Low Profile WAGO Push Connectors
UL Recognized Components
Single-Sided CEM3 Substrate
3-Step MacAdam Color Binning
LM80 Tested LEDs by Samsung
Beam Angle: 120º
Reported Life Expectancy: L70> 36,000 hours at Tc < 85ºC
Calculated Life Expectancy: L70 = 93,000 hours at Tc < 85ºC
Maximum Board Temperature at Tc Point: 85ºC
Driver Features
120V Input, Pulse Wave Modulation Dimming
High Power Factor
UL 8750 Recognized Component LED Power Unit
Meets FCC Part 15 Class B (Consumer) Limit for EMI
Over Current, Short Circuit, and Open Circuit Protection
Class 2 Output
Type 1 Outdoor, Suitable for Dry and Damp Locations
Up to 194ºF/90ºC Maximum Case Temperature
THD:
