Description

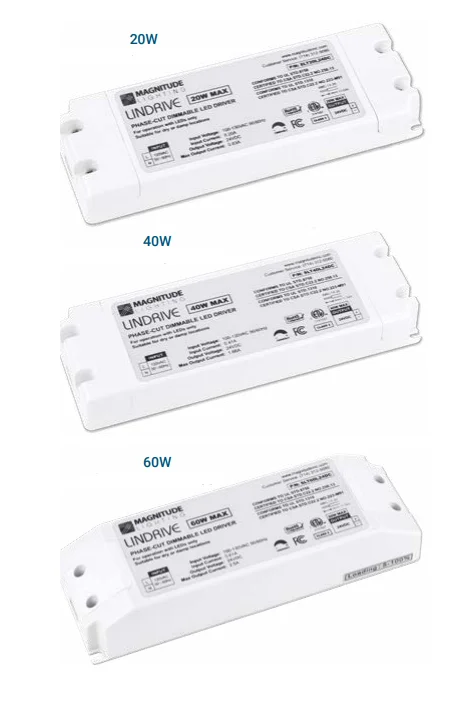

Magnitude Lighting LINDRIVE Series Constant Voltage LED Driver, 20W 40W 60W Max Power Output, 120V Input, Fixed 12Vdc or 24Vdc Output, Phase Dimmable 10%-100%
Magnitude LINDRIVE Series Constant Voltage LED Power Supply
An electronic Class 2, phase dimmable LED driver with a low profile hard plastic case making it the perfect choice for lower power tape lighting, kick/cove lighting, under cabinet lighting and multiple other residential and commercial lighting applications
LED Power Supply Max Power Output: 20W 40W or 60W
Input Voltage: 120VAC, Output Voltage: 12VDC or 24VDC
Current Output: up to 5.0A
Dimming: phase-dimmable down to 10% with leading edge TRIAC dimmers
Class 2 power supply
IP21 Damp/Dry Location
UL Listed
Terminal Blocks with Side Feed
| Part Number | Max Load | Input | Output | Dimming | Location Rating |
| SLT20L12DC | 20W | 120VAC | 12VDC | Phase | Dry and Damp |
| SLT40L12DC | 40W | 120VAC | 12VDC | Phase | Dry and Damp |
| SLT60L12DC | 60W | 120VAC | 12VDC | Phase | Dry and Damp |
| SLT20L24DC | 20W | 120VAC | 24VDC | Phase | Dry and Damp |
| SLT40L24DC | 40W | 120VAC | 24VDC | Phase | Dry and Damp |
| SLT60L24DC | 60W | 120VAC | 24VDC | Phase | Dry and Damp |
Spec Sheets
Magnitude Lindrive Series Spec Sheet
Magnitude Lindrive-Series Installation Guide
