Description

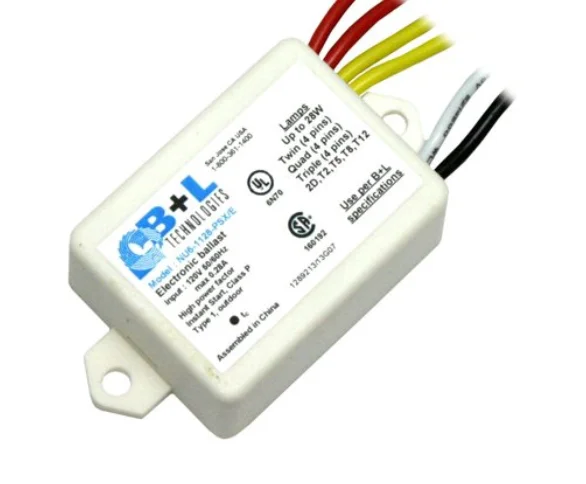

B+L Technologies Electronic Ballast with End of Life (EOL), 120V, Single Lamp 5W thru 26W 4-pin CFLs plus T5, T8 and T12 Linear Lamps, Mini-square Instant Start Ballast
NU6-1128-PSX/E has been discontinued by manufacturer and now shipping NU6-1128-PSX/E-RFI which is exactly same unit now also with RFI protection
B+L Miniature Electronic Single Lamp Ballast with End of Life
End-of-Life auto-reset protection circuit
Once the lamp filament is spent. The ballast will stop working and thus protect the spent lamp from overheating and charring the lamp base. This feature, allows for lamp replacement without power interruption.
Features
Compact and Linear Lamps Up To 28W
Plastic casing with easy mounting feet
Quiet Operation with Sound Rating A
UL or UR, CSA certified
Start Temperature down to minus 10°C
High Power Factor at more than .9
Operates the following Single 4-Pin CFL Lamps
Twin: 5W, 7W, 9W, 11W, 13W, 18W, 24W
Quad: 10W, 13W, 18W, 26W
Triple: 13W, 18W, 26W
Operates the following Single Linear Tube Lamps
T5: F4T5, F6T5, F8T5, F13T5, F14T5, F21T5, F28T5
T8: F13T8, F14T8, F15T8, F16T8, F17T8, F18T8, F25T8
T12: F14T12, F15T12, F20T12
2D: 10W, 16W, 21W, 28W
