OT12W/UNV/0A3/DIM eldoLED OPTOTRONIC (276PF0) Dual Dim Constant Current Programmable LED Driver – 12W 150mA Dimming-Fast Shipping

Description

eldoLED OPTOTRONIC Programmable Constant Current DUAL DIM LED Driver, 12W Max Power Output, Universal 120-277V Input, Programmable Fixed Output Current of 100-300mA (factory setting 150mA), Output Voltage 26-42V, Dim to 1% or 5%, Feet or Stud Mount, Analog 0-10V / Phase-cut dimming

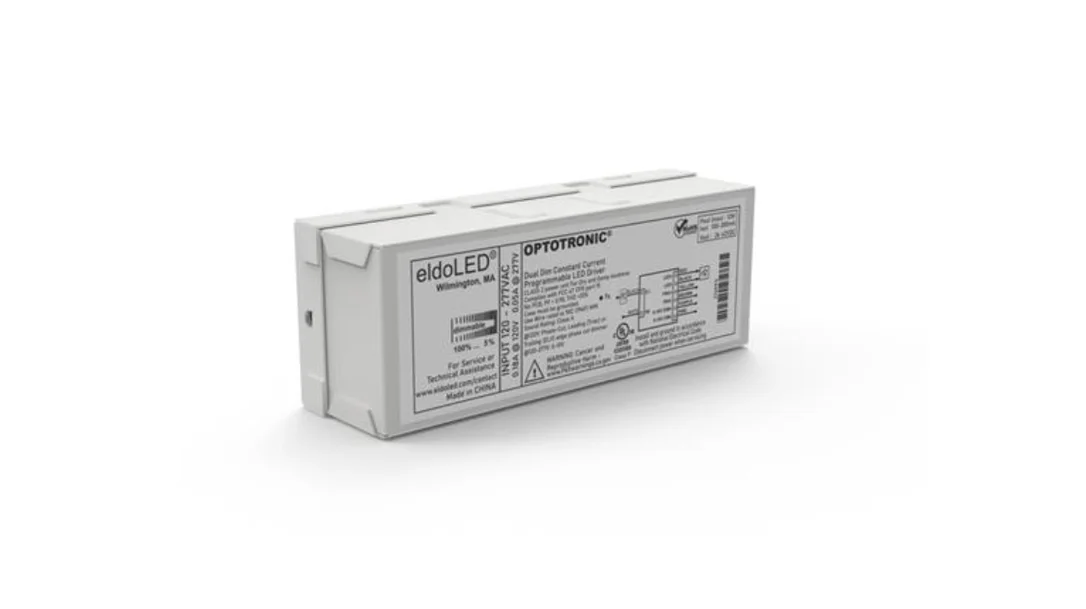

Optotronic 12W 150mA Constant Current DUAL-DIM LED Driver

12W Max AC-DC Converter

Universal Input Voltage: 120-277VAC

Output Voltage: 26-42VDC

Output Current: 100-300mA (factory default 150mA)

Dimensions: F-Style 3.98″(L) x 1.22″(W) x 1.0″(H); J-Style 3.56″(L) x 1.31″(W) x 1.0″(H)

Minimum Dim Level: 1% or 5%

DUAL Dimming: 0-10V or Phase Cut

UL Class 2 output for safe operation

Models

*276PEK | OT 12W UNV 0A3 DualDIM DIM-5 F-Housing J25 | OT12W/120-277/0A3/DIM-5/F

*276PF0 | OT 12W UNV 0A3 DualDIM DIM-5 J-Housing J25 | OT12W/120-277/0A3/DIM-5/J

*2845RT | OT 12W UNV 0A3 DualDIM DIM-1 F-Housing J25 | OT12W/120-277/0A3/DIM-1/F

*2845RS | OT 12W UNV 0A3 DualDIM DIM-1 J-Housing J25 | OT12W/120-277/0A3/DIM-1/J

Spec Sheets

OPTOTRONIC OT12W UNV 0A3 DUALDIM DIM-5 Spec Sheet

OPTOTRONIC OT12W UNV 0A3 DUALDIM DIM-1 Spec Sheet

eldoLED Small Form Factor Datasheet
