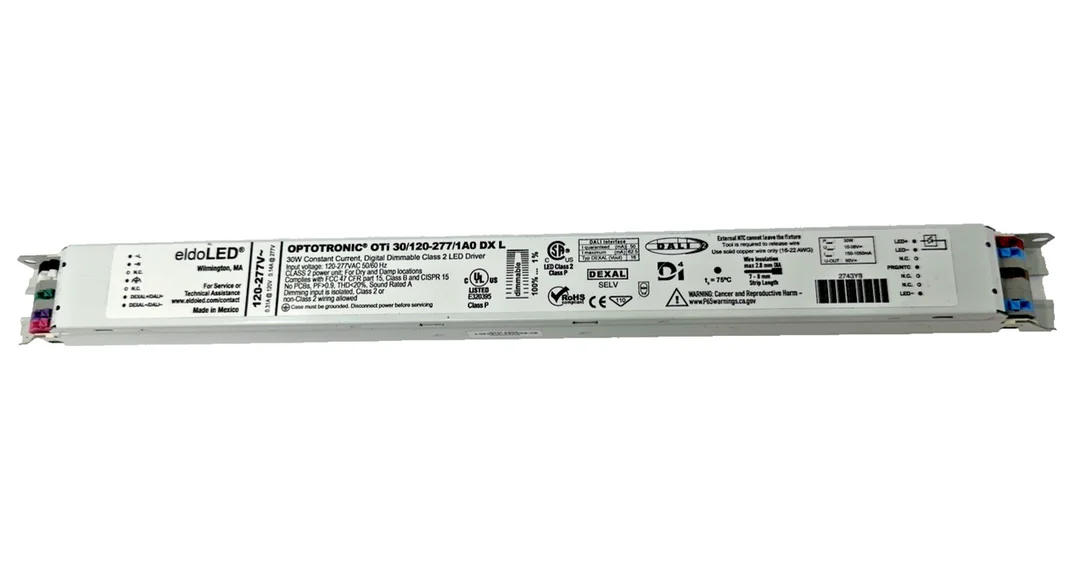

OTi30/120-277/1A0 DX L Optotronic (78033/2743Y8) eldoLED Programmable Constant Current LED Driver – 30W D4i-Fast Shipping

Description

Optotronic Constant Current Programmable LED Driver with D4i Technology, 30W Max Power Output, Universal 120-277V Input, Output Current Programmable 150-1050mA (factory default 700mA), Output Voltage 10-56VDC, DALI-2/D4i Dimming Interface 1%-100%

eldoLED Optotronic 30W 700mA D4i Programmable Constant Current LED Driver

Max Power 30W

Input Voltage: 120-277 VAC

Output Voltage: 10-56Vdc

Output Current: 150-1050mA programmable in 1mA increments, FACTORY SET TO 700mA

Class 2

Dry and Damp Rated

DALI/D4i control dimmable 1%-100%

D4i and DALI Certified, DEXAL

Note: Osram Optotronic brand is now part of the Acuity eldoLED Optotronic family.

Spec Sheets

eldoLED Optotronic OTi30/120-277/1A0 DX L (78033/*2743Y8) Spec Sheet
