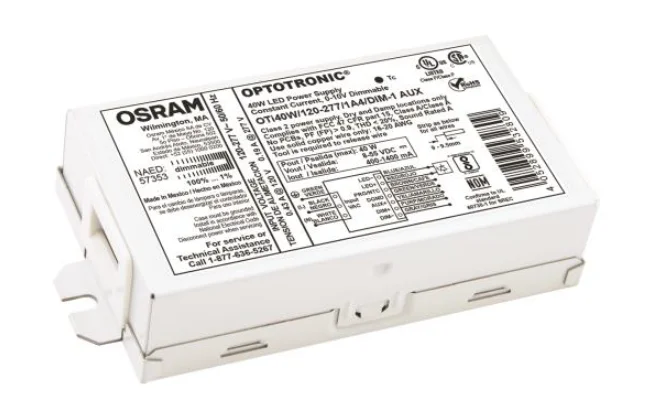

OTi40W/120-277/1A4/DIM-1 AUX OPTOTRONIC (57353/2743W2) Compact Programmable LED Driver – 40W Feet-Mount AUX-port-Fast Shipping

Description

OPTOTRONIC Constant Current LED Driver with Auxiliary Port , 40W Max Power Output, 120-277V Input Voltage, Programmable Output Current 400-1400mA (factory default setting 700mA), Output Voltage 8-55VDC, 0-10V Analog Dimming with 1%-100% Range, F-style case with mounting feet.

Optotronic Compact 40W Programmable Constant Current Power Supply

40W Programmable AC DC Converter

Auxiliary Port: Output Voltage (VDC) 12/20/24V (configurable)

Input Voltage: 120-277 VAC

Output Voltage: 8-55V DC

Output Current: 400-1400mA programmable, FACTORY SET TO 700mA

0-10V Analog Dimming 1%-100%

F-style: Mounting Feet

Note: Osram Optotronic brand is now part of the Acuity eldoLED Optotronic family.

Spec Sheets

OTi40W/120-277/1A4/DIM-1 Spec Sheet
