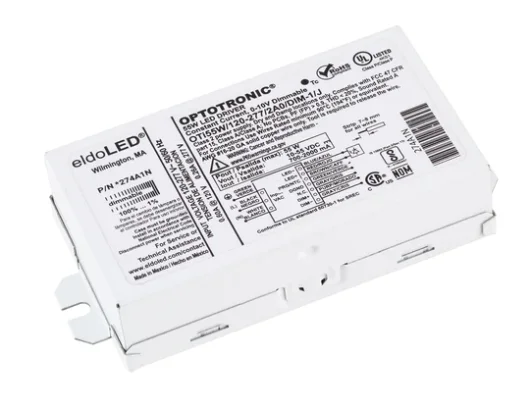

OTi55W/120-277/2A0/DIM-1/J eldoLED OPTOTRONIC (57356/274A1N) Constant Current LED Driver – 55W 1000mA-Fast Shipping

Description

OPTOTRONIC Constant Current LED Driver, 55W Max Power Output, Universal120-277V Input, Programmable Fixed Output Current 700-2000mA (factory setting 1000mA), Output 8-55VDC, 0-10V Analog Dimming 1-100% Range, J-style case with bottom exit PEM studs

Optotronic 55W 1000mA Programmable Constant Current LED Driver – Studs

Up to 55W Power Output

Input Voltage: 120-277 VAC

Output Voltage: 10-55V DC

Output Current: 700-2000mA programmable, FACTORY SET TO 1000mA

0-10V Analog Dimming 1%-100%

J-style: Bottom exit quick connect wiring, 2″ PEM Studs

Note: Osram Optotronic brand in now part of the Acuity eldoLED Optotronic family.

Spec Sheets

OTi55W/120-277/2A0/DIM-1/J Optotronic (57356/*274A1N) Specification Sheet

OPTOTRONIC Programmable Compact Dimmable LED Drivers

OPTOTRONIC Technical Application Guide
