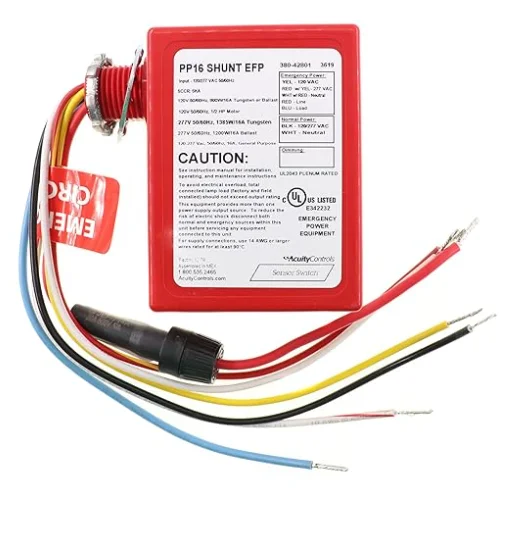

PP16 SHUNT EFP Acuity SensorSwitch Emergency Bypass Relay – 16A EFP-Fast Shipping

Description

Sensor Switch PP16 Shunt EFP Emergency Lighting Bypass Relay, External Fault Protection (EFP), Input 120/277V, power rating up to 16A, 1/2″ knock-out mounting

Acuity Controls SensorSwitch PP16 Shunt EFP Bypass Relay Pack

PP16 SHUNT EFP (External Fault Protection) bypass relay operates as an automatic bypass shunt for control devices (relay packs, toggle switches, and phase dimming) that are controlling emergency powered lighting loads.

Automatically overrides emergency lights on upon loss of Normal Power circuit

UL924 , UL916 Emergency Lighting Compliant Field Installation

Compatible with lighting loads up to 16A

Size: (not incl. 1/2 chase nipple) 3.38 H x 2.53 W x 1.83 D

Universal input 120/277V

Push button testing

Meets NEMA410 ratings for LED/electronic ballast inrush

CA Title 24 Compliant

Plenum Rated (UL 2043)

Spec Sheets

SENSOR SWITCH PP16 SHUNT EFP Specs

SENSOR SWITCH PP16 SHUNT EFP Installation Instructions
