RACT09-350 RECOM AC-DC LED Driver, Universal Input 198-264V, 350mA constant current output, Triac Dimming

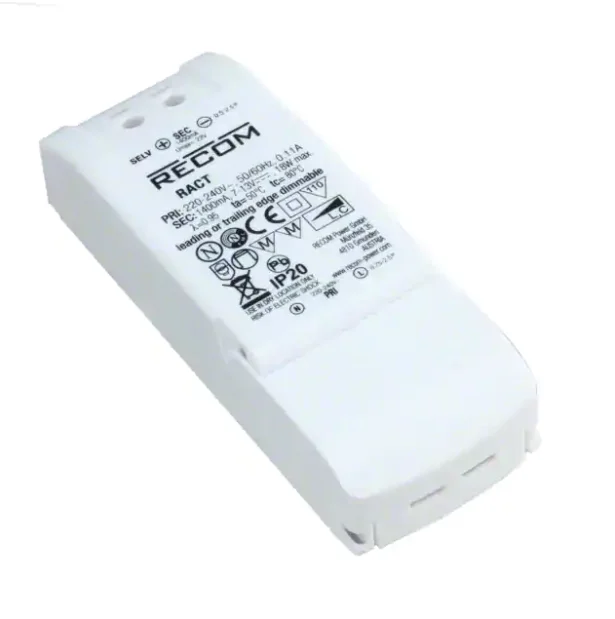

RECOM 9W AC/DC Dimmable LED Driver
The RACT09-xxx series are low cost, triac-dimmable, constant current 9W LED drivers available with either 350mA, 500mA or 700mA full-range outputs. The drivers are Class II (double insulated) meaning no earth connection is required. The phase angle dimming works with leading or trailing edge dimmers. The RACT09 is suitable for indoor locations up to 50°C ambient temperature and is certified for building into furniture for applications such as dimmable shelf lighting, cove lighting or accent lighting. It is CE marked (LVD + EMC + RoHS), EAC and has IEC61347-1/IEC61347-2-13 CB report certification.
Total Power: 9 Watts
Constant Current Output: 350mA
Output Voltage: 13~26V
Input Voltage: 198-264VAC
IP20 Rated
Triac dimmable with leading or trailing edge dimmers
Class II with SELV output (no earth required)
Extra-large screw terminals and integrated cable clamps for easy installation
Power factor corrected>0.95
Dimming range 1..100%
Compatible with a wide range of dimmers
