Description

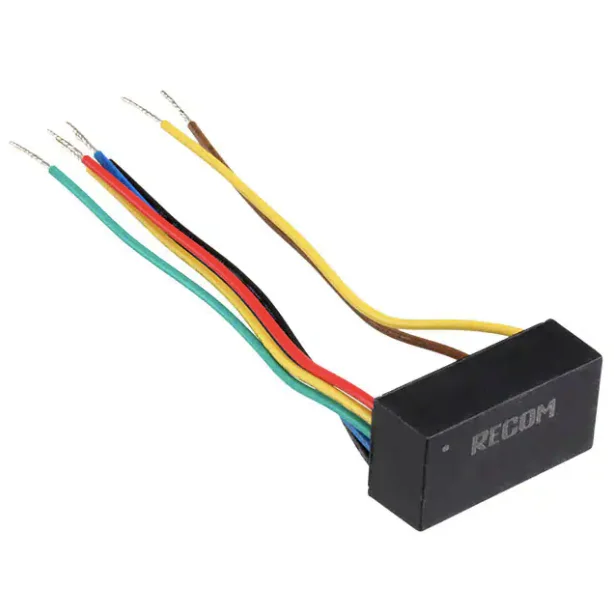

RBD-12-0.35/W RECOM DC-DC Buck Boost LED Driver, Universal Input 8-36V, 350mA constant current output
RECOM 20W DC/DC- Convertor LED Power Supply
The RBD-12 series is a Buck-Boost constant current source designed for driving high power LED applications. Two output currents are available, 350mA and 500mA, and the maximum output voltage is 40V. The drivers have digital and analogue voltage dimming control and a regulated reference 5V output. Typical applications are solar, off-grid lighting, mobile traffic signs and battery-powered lighting. The wired version is IP67 rated
Total Power: 20 Watts
Constant Current Output Range: 0-350mA
Output Voltage: 2-40V
Input Voltage: 8-36V
IP67 Rated
Buck-Boost LED Driver up to Vout=40V
Digital PWM and Analogue Voltage Dimming
High Efficiency to 92%
EN60950-1 and UL60950-1 Certified
EMC Class A Without Extern Components
Pinned or Wired Version
5 Year Warranty
