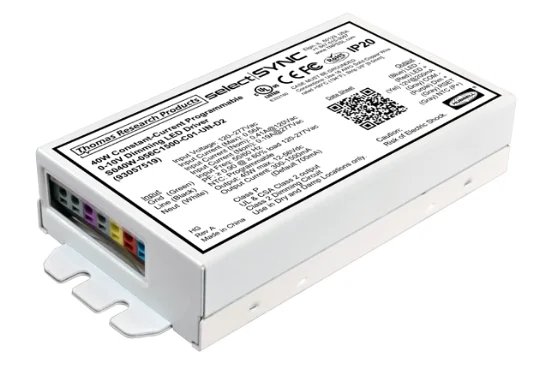

S040W-056C1500-C02-UN-D2 Thomas Research selectSYNC Programmable LED Driver – 40W 700mA Dimmable-Fast Shipping

Description

Thomas Research Constant Current LED Driver, 40W Max Output Power, Universal 120-277V Input, Fixed Programmable Output Current 300-1500mA (factory set at 700mA), 12-56Vdc Output, Dual Entry, Analog 0-10V Dimmable

Thomas Research 40W Power Supply – Dual Entry

Max Total Power: 40 Watts

Output Current 300-1500mA (factory set at 700mA)

Input Voltage: 120-277 VAC

UL Class P, Class 2

IP20 Dry & Damp Location Rated

Dimmable 0-10V with 0-100% adjustable minimum

Linear or logarithmic dimming curve options

Auxiliary 12Vdc, 200mA output for powering controls or fans

Spec Sheets

Thomas Research S040W-056C1500-C02-UN-D2 Specs

Thomas Research selectSYNC Brochure
