Description
Thomas Research Constant Current LED Driver, 50W Max Output Power, Universal 120-277V Input, Fixed Programmable Output Current 400-1400mA (factory default 1400mA), 12-55Vdc Output, Analog 0-10V Dimmable

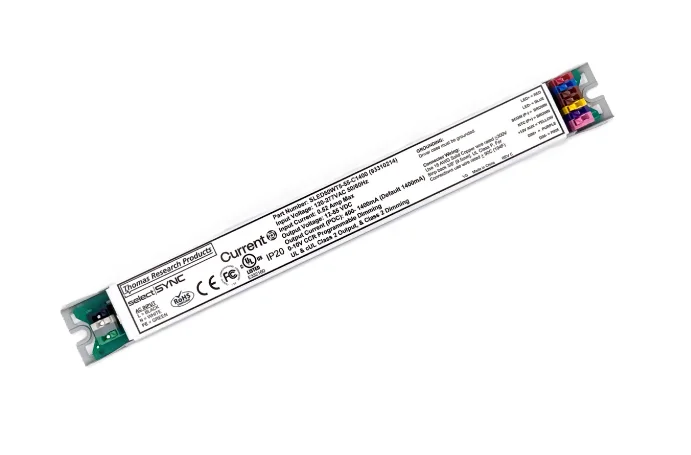

Thomas Research 50W 1400mA Programmable Constant Current LED Driver
Max Total Power: 50 Watts
Programmable Output Current: 400-1400mA (factory set at 1400mA)
Input Voltage: 120-277 VAC
UL Class P, Class 2
Dry & Damp Location Rated
Dimmable 0-10V with 1-100% adjustable minimum
LIN Linear (default) or LOG logarithmic dimming curve programmable options
Auxiliary 12Vdc, 200mA output for powering controls or fans
Spec Sheets
Thomas Research SLED50WT5-55-C1400 Specs
Thomas Research selectSYNC Brochure
