Description
Advance Xitanium Field-Select Constant Current LED Driver, 13W Max Power Output, Universal 120-277V Input, Field Selectable 150/200/250/300mA Output Current, 20-42V Output Voltage, Dimmable Leading Edge & Trailing Edge (LE + TE)

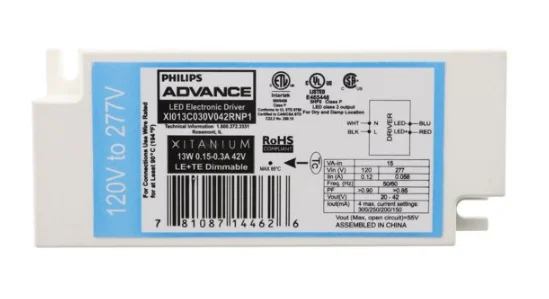

Advance Xitanium 13W Field Adjustable Constant Current LED Driver
The Advance Xitanium range of phase-cut dimming LED drivers are perfectly suited for commercial fittings in down light and track lighting applications.
Total Output Power: 13 Watts
Fixed Current Output adjustable at 300/250/200/150mA via DIP switch on unit
Input Voltage: 100-277 VAC
Output Voltage Range: 20-42V
UL Damp and Dry
Dimmable Leading Edge & Trailing Edge (LE + TE) 2%-100%
Operating Temp Range: -20 to +50 °C
Feet Mounting
Class 2 Wiring
Replaces Philips Advance Xitanium XI013C036V048DNM2
Spec Sheets
Advance Xitanium XI013C030V042RNP1 Spec Sheet
