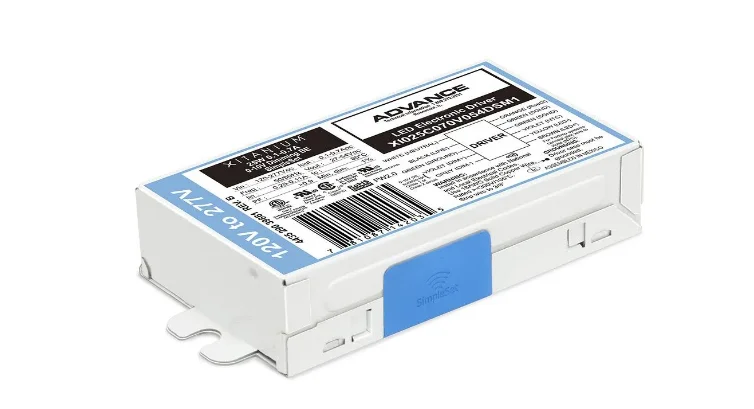

XI025C070V054DSM1 Advance Xitanium Programmable LED Driver – 25W 700mA Bottom-Entry-Studs-Fast Shipping

Description

Advance Xitanium Constant Current Programmable LED Driver with SimpleSet, 25W Max Power Output, Universal 120V-277V Input, Programmable Output Current 100-700mA (factory default 700mA), 27-54V Output, Analog 0-10V Dimmable 1%-100%, Bottom Entry Leads with Studs

ADVANCE Xitanium 25W Programmable LED Driver

XITANIUM 25W 0.70A 54V 0-10V SSET 1% BE

Factory set at 700mA output, adjust down to 100mA via SimpleSet technology or resistor. These drivers offer the needed flexibility and performance for the application with precise tuning of drive currents, selectable dimming curves and adjustable minimum dimming levels.

Total Output Power: 25 Watts

Input Voltage: 100-277 VAC

Output Voltage Range: 27-54V

Programmable Output Current 100-700mA (default 700mA)

Dimming Analog 0-10V 1%-100%

Operating Temp Range: -20 to +50 °C

UL Damp and Dry

Mounting Bottom Exit Studs

Class 1 and Class 2 Wiring

A component in many LED lighting fixtures including: Lightolier C6l20835MZ10U

Spec Sheets

Advance Xitanium XI025C070V054DSM1 Specs
