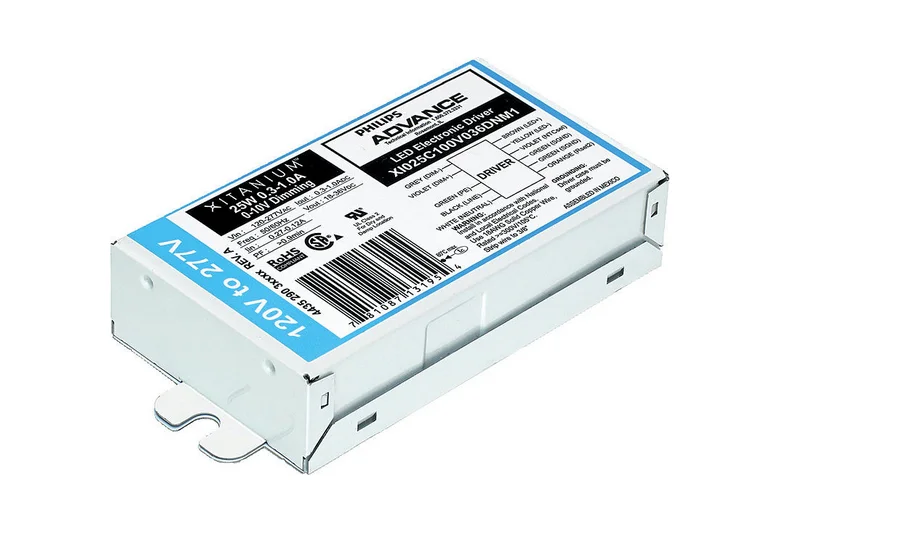

XI025C100V036DNM1 Advance Xitanium Adjustable LED Driver – 25W 1000mA Dimmable Side-Entry-Fast Shipping

Description

Advance Xitanium Constant Current LED Driver, 25W Max Power Output, Universal 120-277V Input, Adjustable Output Current 300-1000mA (factory default 1000mA) via external resistor (Rset), 18-36V Output Voltage, Analog 0-10V Dimmable 5%-100%, Bottom-Exit Stud Mount

DISCONTINUED BY MANUFACTURER – NOW SHIPPING MANUFACTURER’S SUGGESTED REPLACEMENT – Please review replacement to confirm it will work for your application and order here: Manufacturer’s Suggested Replacement

Advance Xitanium 25W 1000mA LED Driver

Xitanium 25W 0.1-1.0A 36V 0-10V

Total Output Power: 25 Watts

Current Output 300-1000mA (Rset open default 1000mA)

Input Voltage: 100-277 VAC

Output Voltage Range: 18V-36V

UL Damp and Dry

Dimmable 5%-100%, 0-10V

Class 2

Bottom Exit Stud Mounting

Spec Sheets

Advance Xitanium XI025C100V036DNM1 Spec Sheet
