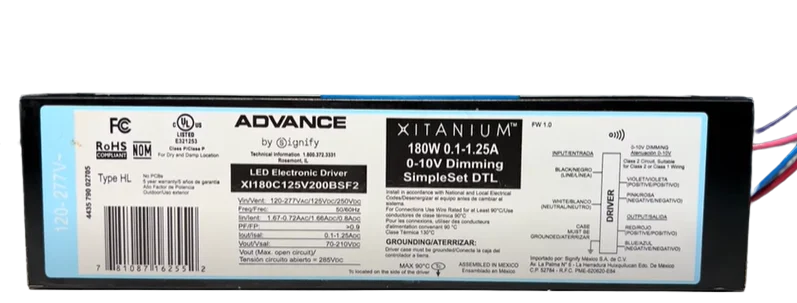

XI180C125V200BSF2 Advance Xitanium Programmable LED Driver – 180W 1050mA Dimming-Fast Shipping

Description

Advance Xitanium Programmable Constant Current LED Driver, 150W Max Power Output, Universal 120V-277V Input, Programmable Fixed 100mA to 1250mA (Factory Default 1050A), Output 70-210V, Dimmable 0-10V Analog 10%-100%

Advance Xitanium 180W 1050mA Programmable Outdoor LED Power Supply

180W 0.1-1.25A 0-10V Dimming

Total Output Power: 180 Watts

Input Voltage: 120-277 VAC

Output Voltage Range: 70-210V

Output Current: Programmable 100mA to 1250mA (Factory Default 1050mA) via SimpleSet

UL Damp and Dry and HL

0-10V Analog 10% – 100% Dimming Range

Operating Temp Range: -40 to +55 °C

Class 1 and 2 Wiring

Spec Sheets

Advance Xitanium XI180C125V200BSF2 Spec Sheet
