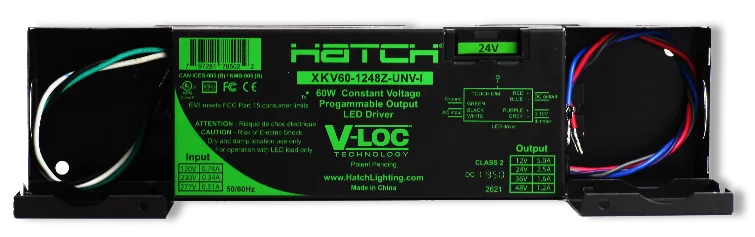

XKV_-_48Z-UNV-I Hatch V-LOC Key-Select Constant Voltage LED Driver – 40W/60W/96W 12V/24V/36V/48V Knock-Out-Fast Shipping

Description

Hatch V-LOC Selectable-Key Constant Voltage LED Driver, 40W/60W/96W Max Output Power, Universal 120-277V Input, Fixed Output Voltage 12V/24V/36V/48Vdc, 0-10 Analog and TOUCH Dimming, Dry/Damp Location Rated, Knockout Case style

Hatch V-LOC 40/60/96W Constant Voltage Key LED Driver w/ Knockout

Each V-LOC driver ships with key selected above. If you require additional keys, simply order the V-LOC key below for the desired output voltage and snap it into the LED driver. No additional programming tools or software are required!

Total Max Power: 40, 60 or 96 Watts

Output Current: 830-3300mA (40W), 1250-5000mA (60W), 2000-4000mA (96W)

Input Voltage: 120-277 VAC

Output Voltage: 12/24/36/48VDC (40W and 60W) or 24/36/48VDC (96W)

UL Dry & Damp Location, IP20

Class 2

Analog 0-10V and TOUCH Dimming

Metal Case

60W model is currently Distributor Pack: comes with X24V key.

Click link below to order additional V-LOC Keys.
