XWV_-_48Z-UNV-I Hatch V-LOC Key-Select Constant Voltage LED Driver – 40W/60W/96W 12V/24V/36V/48V Dimmable-Fast Shipping

Description

Hatch V-LOC Selectable-Key Constant Voltage LED Driver, 40W/60W/96W Max Output Power, Universal 120-277V Input, Fixed Output Voltage 12V/24V/36V/48Vdc, 0-10 Analog and TOUCH Dimming, Dry/Damp Location Rated, Side Leads Feet Mount

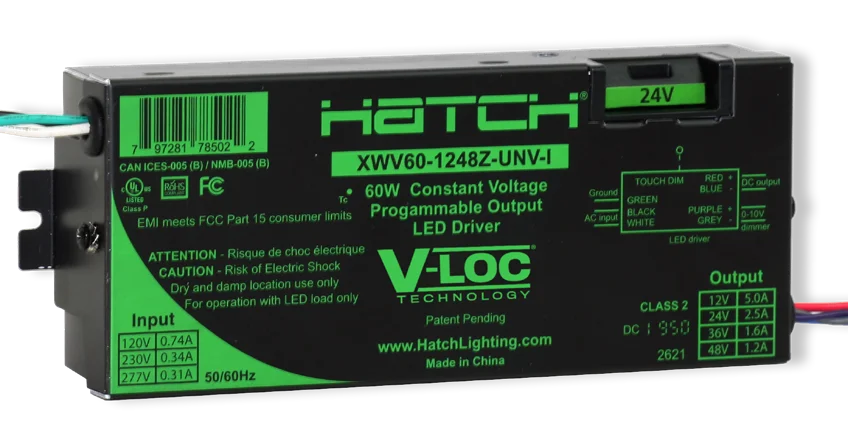

Hatch V-LOC 40/60/96W Constant Voltage Key Programmable LED Driver

Simply select the appropriate V-LOC key for the desired output voltage and snap it into the LED driver. No additional programming tools or software are required!

Total Max Power: 40, 60 or 96 Watts

Output Current: 830-3300mA (40W), 1250-5000mA (60W), 2000-4000mA (96W)

Input Voltage: 120-277 VAC

Output Voltage: 12/24/36/48VDC (40W and 60W) or 24/36/48VDC (96W)

UL Dry & Damp Location, IP20

Class 2

Analog 0-10V and TOUCH Dimming

Metal Case

Click link below to order additional/other Keys.
